Rulman Yatakları » Rulman Yatakları - UC » UCT3

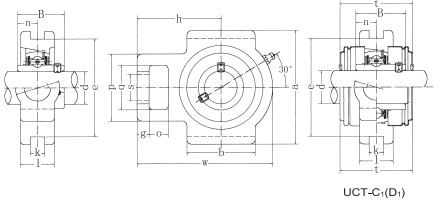

Unit NO.	Dimensions mm in.																Wgh (kg)
Unit NO.	d	o	g	p	q	s	b	k	e	a	w	j	l	h	B	n	Wgh (kg)
UCT305	25	16	14	62	36	26	65	12	80	89	122	36	26	76	38	15	1.4
UCT305-13	13/16	5/8	9/16	2-7/16	1-13/32	1-1/32	2-9/16	0.472	3-5/32	3-1/2	4-13/16	1-13/32	1-1/32	3	1.4961	0.591	1.4
UCT305-14	7/8	5/8	9/16	2-7/16	1-13/32	1-1/32	2-9/16	0.472	3-5/32	3-1/2	4-13/16	1-13/32	1-1/32	3	1.4961	0.591	1.4
UCT305-15	15/16	5/8	9/16	2-7/16	1-13/32	1-1/32	2-9/16	0.472	3-5/32	3-1/2	4-13/16	1-13/32	1-1/32	3	1.4961	0.591	1.4
UCT305-16	1	5/8	9/16	2-7/16	1-13/32	1-1/32	2-9/16	0.472	3-5/32	3-1/2	4-13/16	1-13/32	1-1/32	3	1.4961	0.591	1.4
UCT306	30	18	16	70	41	28	74	16	90	100	137	41	28	85	43	17	1.8
UCT306-17	1-1/16	23/32	5/8	2-3/4	1-5/8	1-3/32	2-29/32	0.63	3-55/64	3-15/16	5-13/32	1-5/8	1-3/32	3-11/32	1.6929	0.669	1.8
UCT306-18	1-1/8	23/32	5/8	2-3/4	1-5/8	1-3/32	2-29/32	0.63	3-55/64	3-15/16	5-13/32	1-5/8	1-3/32	3-11/32	1.6929	0.669	1.8
UCT306-19	1-3/16	23/32	5/8	2-3/4	1-5/8	1-3/32	2-29/32	0.63	3-55/64	3-15/16	5-13/32	1-5/8	1-3/32	3-11/32	1.6929	0.669	1.8
UCT307	35	20	17	75	45	30	80	16	100	111	150	45	32	94	48	19	2.4
UCT307-20	1-1/4	20	17	75	45	30	80	16	100	111	150	45	32	94	48	19	2.4
UCT307-21	1-5/16	25/32	43/64	2-15/16	1-25/32	1-3/16	2-5/32	0.63	3-15/16	4-3/8	5-29/32	1-25/32	1-1/4	3-11/16	1.8898	0.748	2.4
UCT307-22	1-3/8	25/32	43/64	2-15/16	1-25/32	1-3/16	2-5/32	0.63	3-15/16	4-3/8	5-29/32	1-25/32	1-1/4	3-11/16	1.8898	0.748	2.4
UCT307-23	1-7/16	25/32	43/64	2-15/16	1-25/32	1-3/16	2-5/32	0.63	3-15/16	4-3/8	5-29/32	1-25/32	1-1/4	3-11/16	1.8898	0.748	2.4
UCT308	40	22	19	83	50	32	89	18	112	124	162	50	34	100	52	19	3
UCT308-24	1-1/2	7/8	3/4	3-17/64	1-31/32	1-1/4	3-1/2	0.709	4-13/32	4-7/8	6-3/8	1-21/32	1-11/32	3-15/16	2.0472	0.748	3
UCT308-25	1-9/16	7/8	3/4	3-17/64	1-31/32	1-1/4	3-1/2	0.709	4-13/32	4-7/8	6-3/8	1-21/32	1-11/32	3-15/16	2.0472	0.748	3
UCT309	45	24	20	90	55	34	97	18	125	138	178	55	38	110	57	22	4
UCT309-26	1-5/8	15/16	25/32	3-17/32	2-5/32	1-11/32	3-13/16	0.709	4-59/64	5-7/16	7	2-5/32	1-1/2	4-11/32	2.2441	0.866	4
UCT309-27	1-11/16	15/16	25/32	3-17/32	2-5/32	1-11/32	3-13/16	0.709	4-59/64	5-7/16	7	2-5/32	1-1/2	4-11/32	2.2441	0.866	4
UCT309-28	1-3/4	15/16	25/32	3-17/32	2-5/32	1-11/32	3-13/16	0.709	4-59/64	5-7/16	7	2-5/32	1-1/2	4-11/32	2.2441	0.866	4
UCT310	50	27	22	98	61	37	106	20	140	151	192	61	40	118	61	22	5
UCT310-29	1-13/16	1-1/16	7/8	3-27/32	2-13/32	1-15/32	4-3/16	0.787	5-33/64	5-15/16	7-9/16	2-13/32	1-9/16	4-21/32	2.4016	0.866	5
UCT310-30	1-7/8	1-1/16	7/8	3-27/32	2-13/32	1-15/32	4-3/16	0.787	5-33/64	5-15/16	7-9/16	2-13/32	1-9/16	4-21/32	2.4016	0.866	5
UCT310-31	1-15/16	1-1/16	7/8	3-27/32	2-13/32	1-15/32	4-3/16	0.787	5-33/64	5-15/16	7-9/16	2-13/32	1-9/16	4-21/32	2.4016	0.866	5
UCT311	55	29	23	105	66	39	115	22	150	163	207	66	44	127	66	25	6.4
UCT311-32	2	1-15/16	29/32	4-1/8	2-19/32	1-17/32	4-17/32	0.866	5-29/32	6-13/32	8-5/32	2-19/32	1-23/32	5	2.5984	0.984	6.4
UCT311-33	2-1/16	1-15/16	29/32	4-1/8	2-19/32	1-17/32	4-17/32	0.866	5-29/32	6-13/32	8-5/32	2-19/32	1-23/32	5	2.5984	0.984	6.4
UCT311-34	2-1/8	1-15/16	29/32	4-1/8	2-19/32	1-17/32	4-17/32	0.866	5-29/32	6-13/32	8-5/32	2-19/32	1-23/32	5	2.5984	0.984	6.4
UCT311-35	2-3/16	1-15/16	29/32	4-1/8	2-19/32	1-17/32	4-17/32	0.866	5-29/32	6-13/32	8-5/32	2-19/32	1-23/32	5	2.5984	0.984	6.4
UCT312	60	31	25	113	71	41	123	22	160	178	220	71	46	135	71	26	7.6
UCT312-36	2-1/4	1-7/32	31/32	4-7/16	2-25/32	1-5/8	4-27/32	0.866	6-19/64	7	8-21/32	2-25/32	1-13/16	5-5/16	2.7953	1.024	7.6
UCT312-37	2-5/16	1-7/32	31/32	4-7/16	2-25/32	1-5/8	4-27/32	0.866	6-19/64	7	8-21/32	2-25/32	1-13/16	5-5/16	2.7953	1.024	7.6
UCT312-38	2-3/8	1-7/32	31/32	4-7/16	2-25/32	1-5/8	4-27/32	0.866	6-19/64	7	8-21/32	2-25/32	1-13/16	5-5/16	2.7953	1.024	7.6
UCT312-39	2-7/16	1-7/32	31/32	4-7/16	2-25/32	1-5/8	4-27/32	0.866	6-19/64	7	8-21/32	2-25/32	1-13/16	5-5/16	2.7953	1.024	7.6
UCT313	65	32	27	116	70	43	134	26	170	190	238	80	50	146	75	30	9.7
UCT313-40	2-1/2	1-17/64	1-1/16	4-9/16	2-3/4	1-11/16	5-9/32	1.024	6-11/16	7-15/32	9-3/8	3-5/32	1-31/32	5-3/4	2.9528	1.181	9.7
UCT313-41	2-9/16	1-17/64	1-1/16	4-9/16	2-3/4	1-11/16	5-9/32	1.024	6-11/16	7-15/32	9-3/8	3-5/32	1-31/32	5-3/4	2.9528	1.181	9.7
UCT314	70	36	27	130	85	46	140	26	180	202	252	90	52	155	78	33	11
UCT314-42	2-5/8	1-13/32	1-1/16	5-1/8	3-11/32	1-13/16	5-1/2	1.024	7-3/32	7-15/16	9-29/32	3-17/32	2-1/16	6-3/32	3.2283	1.299	11
UCT314-43	2-11/16	1-13/32	1-1/16	5-1/8	3-11/32	1-13/16	5-1/2	1.024	7-3/32	7-15/16	9-29/32	3-17/32	2-1/16	6-3/32	3.2283	1.299	11
UCT314-44	2-3/4	1-13/32	1-1/16	5-1/8	3-11/32	1-13/16	5-1/2	1.024	7-3/32	7-15/16	9-29/32	3-17/32	2-1/16	6-3/32	3.2283	1.299	11
UCT315	75	36	27	132	85	46	150	26	192	216	262	90	55	160	78	32	14
UCT315-45	2-13/16	1-13/32	1-1/16	5-3/16	3-11/32	1-13/16	5-29/32	1.024	7-9/16	8-1/2	10-5/16	3-17/32	2-5/32	6-5/16	3.23	1.26	14
UCT315-46	2-7/8	1-13/32	1-1/16	5-3/16	3-11/32	1-13/16	5-29/32	1.024	7-9/16	8-1/2	10-5/16	3-17/32	2-5/32	6-5/16	3.23	1.26	14
UCT315-47	2-15/16	1-13/32	1-1/16	5-3/16	3-11/32	1-13/16	5-29/32	1.024	7-9/16	8-1/2	10-5/16	3-17/32	2-5/32	6-5/16	3.23	1.26	14
UCT315-48	3	1-13/32	1-1/16	5-3/16	3-11/32	1-13/16	5-29/32	1.024	7-9/16	8-1/2	10-5/16	3-17/32	2-5/32	6-5/16	3.23	1.26	14
UCT316	80	42	30	150	98	53	160	30	204	230	282	102	60	174	86	34	16
UCT316-49	3-1/16	1-21/32	1-3/16	5-29/32	3-27/32	2-3/32	6-5/16	1.181	8-1/32	9-1/16	11-3/32	4-1/32	2-3/8	6-27/32	3.2283	1.26	16
UCT316-50	3-1/8	1-21/32	1-3/16	5-29/32	3-27/32	2-3/32	6-5/16	1.181	8-1/32	9-1/16	11-3/32	4-1/32	2-3/8	6-27/32	3.2283	1.26	16
UCT316-51	3-3/16	1-21/32	1-3/16	5-29/32	3-27/32	2-3/32	6-5/16	1.181	8-1/32	9-1/16	11-3/32	4-1/32	2-3/8	6-27/32	3.2283	1.26	16
UCT317	85	42	32	152	98	53	170	32	214	240	298	102	64	183	96	40	20
UCT317-52	3-1/4	1-21/32	1-1/4	5-31/32	3-27/32	2-3/32	6-11/16	1.26	8-27/64	9-7/16	11-23/3	4-1/32	2-17/32	7-7/32	3.7795	1.575	20
UCT317-53	3-5/16	1-21/32	1-1/4	5-31/32	3-27/32	2-3/32	6-11/16	1.26	8-27/64	9-7/16	11-23/3	4-1/32	2-17/32	7-7/32	3.7795	1.575	20
UCT317-54	3-7/16	1-21/32	1-1/4	5-31/32	3-27/32	2-3/32	6-11/16	1.26	8-27/64	9-7/16	11-23/3	4-1/32	2-17/32	7-7/32	3.7795	1.575	20
UCT318	90	46	32	160	106	57	175	32	228	255	312	110	66	192	96	40	22
UCT318-55	3-7/16	1-13/16	1-1/4	6-5/16	4-3/16	2-1/4	6-7/8	1.26	8-31/32	10-1/32	12-9/32	4-11/32	2-19/32	7-9/16	3.7795	1.575	22
UCT318-56	3-1/2	1-13/16	1-1/4	6-5/16	4-3/16	2-1/4	6-7/8	1.26	8-31/32	10-1/32	12-9/32	4-11/32	2-19/32	7-9/16	3.7795	1.575	22
UCT319	95	46	33	165	106	57	180	35	240	270	322	110	72	197	103	41	24
UCT319-58	3-5/8	1-13/16	1-5/16	6-1/2	4-3/16	2-1/4	7-3/32	1.378	9-29/64	10-5/8	2-11/16	4-11/32	2-27/32	7-3/4	4.0551	1.614	24
UCT319-59	3-11/16	1-13/16	1-5/16	6-1/2	4-3/16	2-1/4	7-3/32	1.378	9-29/64	10-5/8	2-11/16	4-11/32	2-27/32	7-3/4	4.0551	1.614	24
UCT319-60	3-3/4	1-13/16	1-5/16	6-1/2	4-3/16	2-1/4	7-3/32	1.378	9-29/64	10-5/8	2-11/16	4-11/32	2-27/32	7-3/4	4.0551	1.614	24
UCT320	100	48	32	175	115	59	200	35	260	290	345	120	75	210	108	42	32
UCT320-64	4	48 1-7/8	1-1/4	6-7/8	4-17/32	2-21/64	7-7/8	1.378	10-15/64	11-13/32	13-19/32	4-23/32	2-15/16	8-9/32	4.2519	1.6535	32
UCT322	110	52 2-1/16	38 1-1/2	185 7-9/32	125 4-29/32	65 2-9/16	215 8-15/32	38 1496	285 11-7/32	320 12-19/32	385 1 5-5/32	130 5-1/8	80 3-5/32	235 9-1/4	117 46063	46 1.8110	40
UCT324	120	60 2-3/8	42 1-21/32	210 8-9/32	140 2-3/4	70 5-1/2	230 9-1/16	45 1.772	320 12-19/32	355 13-31/32	432 17	140 5-1/2	90 3-17/32	267 10-1/2	126 4.9606	51 2.0079	55
UCT326	130	65 2-9/16	45 1-25/32	220 8-21/32	150 5-29/32	75 2-31/32	240 9-7/16	50 1.969	350 1 3-25/32	385 15-5/32	465 18-5/16	150 5-29/32	100 3-15/16	285 11-7/32	135 53150	54 2.1260	69
UCT328	140	70 2-3/4	50 1-31/32	230 9-1/16	160 6-5/16	80 3-5/32	255 10-1/32	50 1 969	380 14-61/64	415 16-11/32	515 20-9/32	155 6-3/32	100 3-15/16	315 12-13/32	145 5.7086	59 2.3228	84
